Dual glass Poly solar panel 60 cells 270W-285W
Spcifications of Dual glass Poly solar panel 60 cells 270W-285W
ELECTRICAL DATA (STC)
Peak Power Watts-PMAX (Wp)*
270
275
280
285
Power Output Tolerance-PMAX (W)
0 ~
+5
Maximum Power Voltage-VMPP (V)
31.1
31.3
31.6
32
Maximum Power Current-IMPP (A)
8.69
8.78
8.87
8.91
Open Circuit Voltage-VOC (V)
38
38.2
38.4
38.6
Short Circuit Current-ISC (A)
9.28
9.31
9.32
9.36
Module Eficiency m (%)
16.4
16.7
17
17.3
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass
AM1.5.
*Measuring tolerance: ±3%.
ELECTRICAL DATA (NOCT)
Maximum Power-PMAX (Wp)
200
204
208
211
Maximum Power Voltage-VMPP (V)
28.8
29
29.2
29.6
Maximum Power Current-IMPP (A)
6.97
7.04
7.11
7.14
Open Circuit Voltage-VOC (V)
35.2
35.4
35.6
35.8
Short Circuit Current-ISC (A)
7.49
7.52
7.52
7.56
NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind
Speed 1m/s.
MECHANICAL DATA
Solar
Cells
Multicrystalline
156.75 × 156.75 mm (6 inches)
Cell Orientation
60
cells (6 × 10)
1658
× 992 × 6 mm (65.3 × 39.1 × 0.236 inches)
Module Dimensions
1662 × 996 × 6 mm with edge banding (65.4 × 39.2 × 0.236 inches)
1664 × 998 × 7.6 mm with corner protector (65.5 × 39.3 × 0.299 inches)*
Weight
23.5
kg (51.8 lb)
Front Glass
2.5 mm (0.10 inches), High Transmission, AR Coated Heat Strengthened Glass
EVA
White
(PEG5, PEG5.40); Transparent (PEG5.07, PEG5.47)
Back Glass
2.5
mm (0.10 inches), Heat Strengthened Glass
Frame
Frameless
J-Box
IP 67
or IP 68 rated
Photovoltaic
Technology Cable 4.0 mm² (0.006 inches²) Portrait: 140/285 mm (5.5/11.2
inches)
Cables
Landscape:
1200/1200 mm (47.2/47.2 inches)
Connector
Trina
TS4 (1500V)
Fire Type
Type
13
TEMPERATURE RATINGS
NOCT(Nominal Operating Cell Temperature)
44°C (±2°C)
Temperature Coeficient of PMAX
- 0.41%/°C
Temperature Coeficient of VOC
- 0.32%/°C
Temperature Coeficient of ISC
0.05%/°C
MAXIMUM RATINGS
Operational Temperature
-40~+85°C
Maximum SystemVoltage
1500V DC (IEC)
1000V DC (UL)
Max Series Fuse Rating
15A
Details of Dual glass Poly solar panel 60 cells 270W-285W

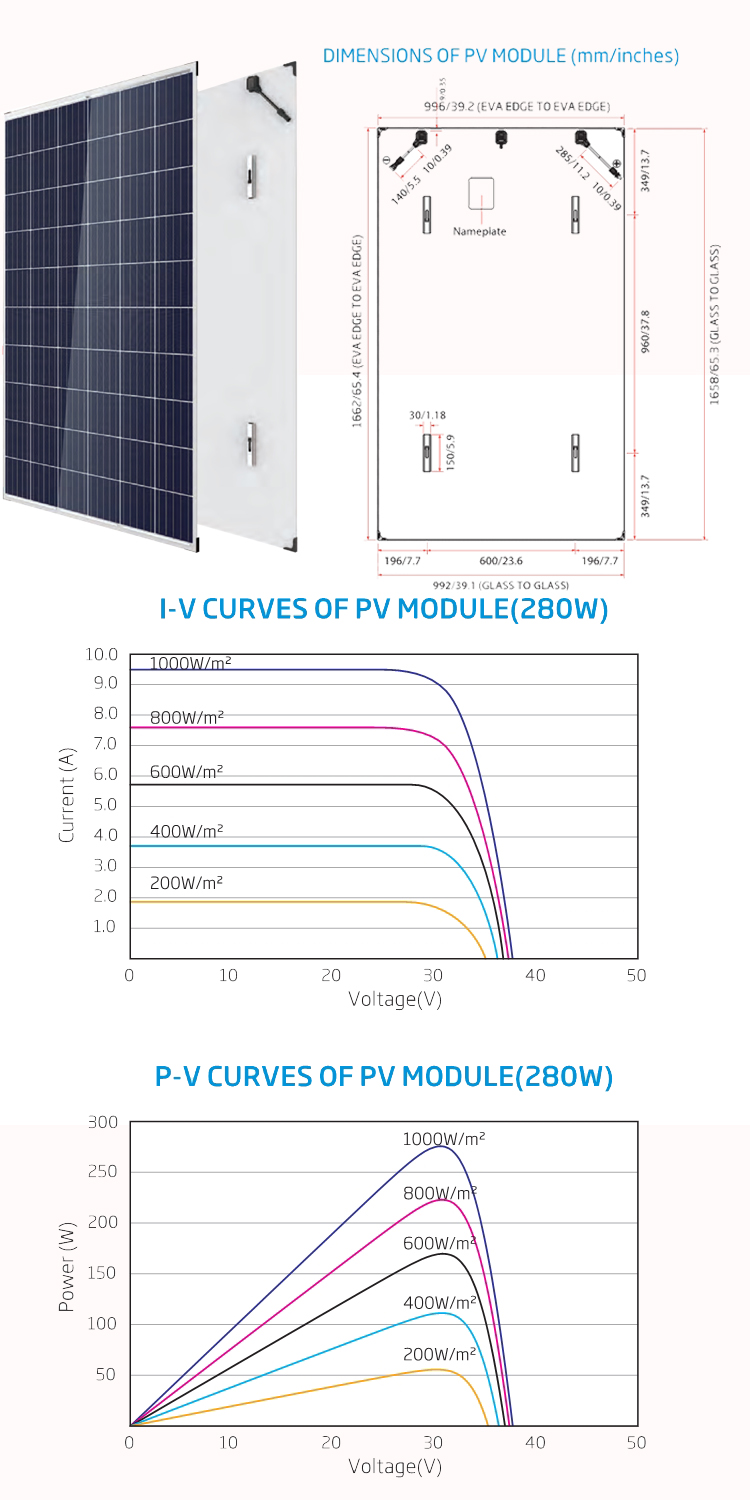

Assembly of Dual glass Poly solar panel 60 cells 270W-285W

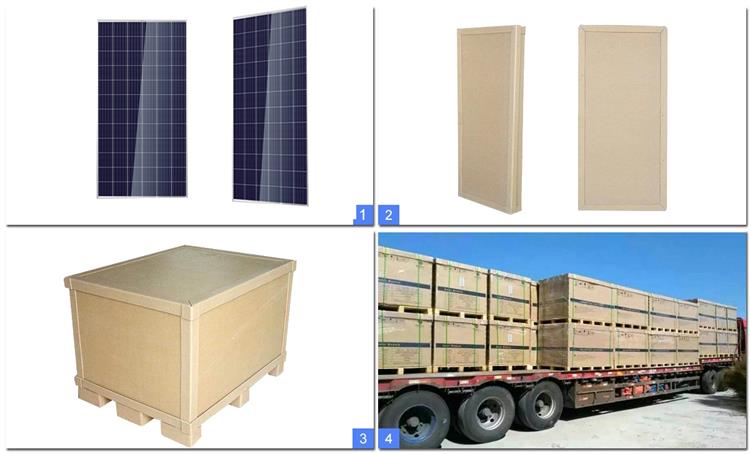

Package of Dual glass Poly solar panel 60 cells 270W-285W
