Streetlight CCTV system
home |

Solar Energy System

 |

Streetlight CCTV system

 |High efficiency solar energy system 150w solar power kit for cctv cameras street light

solar power kit
solar power kit solar power kit solar power kit solar power kit

High efficiency solar energy system 150w solar power kit for cctv cameras street light

- Long standby tiem for 12V loads - Suitable for environment without electricity and network - Low power consumption and long endurance Peak power tracking technology - High conversion rate of solar controller - OEM/ODM service supported
inquiry now
products details


DC output solar solutions

- Long standby tiem for 12V loads

- Suitable for environment without electricity and network

- Low power consumption and long endurance Peak power tracking technology

- High conversion rate of solar controller

- OEM/ODM service supported


Product Name
150w80ah dc 12v output solar power system

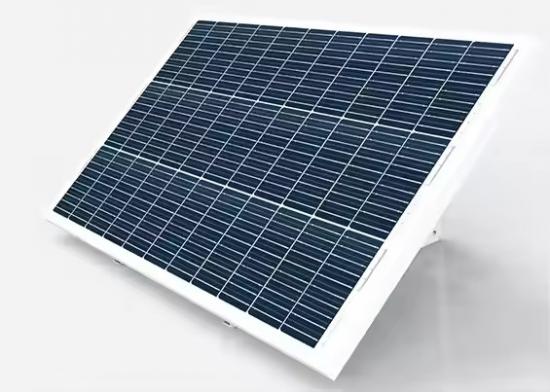

Solar panel
150w 18v mono solar panel
Solar panel size
1150*670*30mm
Solar panel weight
10kg
Battery type
Ternary lithium polymer battery
Battery capacity
12V 80ah
Max pulse discharge current
40A
Battery size
430*165*70mm
Battery weight
6.3kg
Solar controller type
PWM
System voltage
12V
U-type hoop
8-14 U-type hoop
Package size
1155*675*140mm
Package weight
23.5kg
Mark: Dimensions and appearance are subject to change without notice

Low cost solar power system

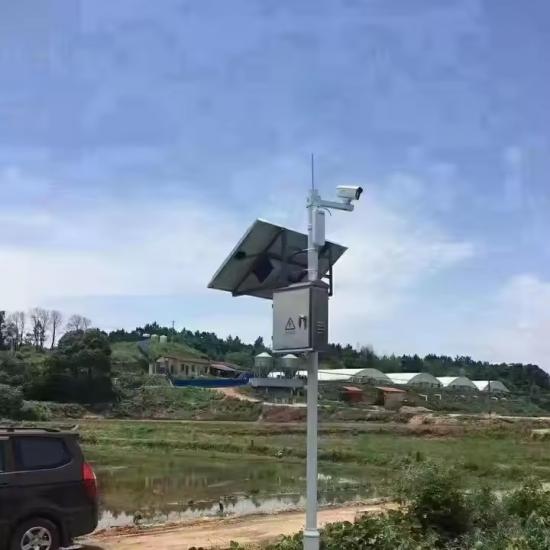

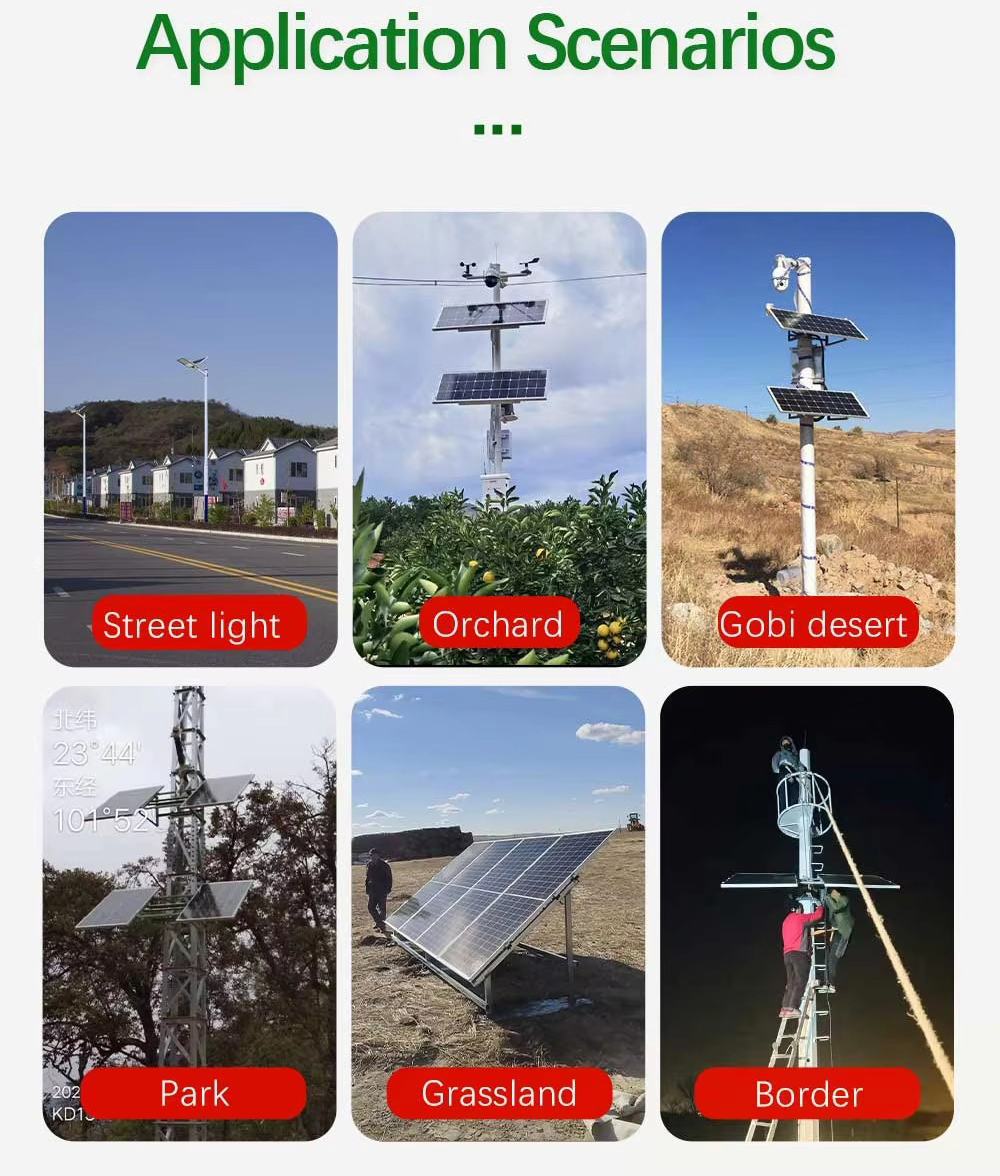

This solar system is equipped with 150W solar panel, 80AH lithium battery and PWM charge controller. Default output of this system is 12V DC(24VDC, 48VDC optional). So, this product provide power to devices such as ip camera, wifi camera, 4G camera, network switch, sensor, street light and so on.

We also provide other solar systems, like 360WH, 480WH, 720WH, 960WH, 1440WH, 2160WH and so on. Feel free to contact us if you have any requirements about power issue.
960wh portable solar supply set solar dc system kit solar 12v output for powering camera pt
Here are what included in this kit:
1) 150w solar panel -- 1 piece
2) 12v 80ah ternary lithium battery -- 1 piece(Inside battery shell)
3) PWM solar charge controller -- 1 piece

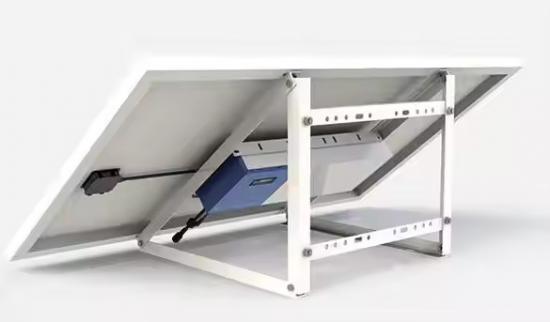

4) Solar panel bracket -- 1 set
5) U shape clamp -- 2 pieces

6) DC cable with connector -- 1 piece



Get Free Inquiry Now
We will contact you as soon as possible!
related products
solar power kit

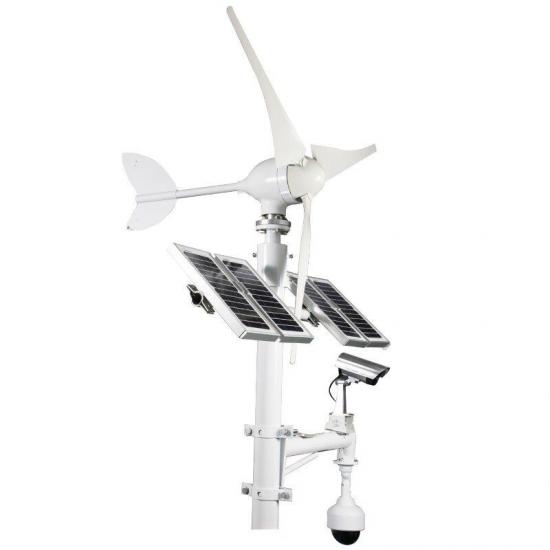

Wind-Solar Hybrid Solar Energy System – 150W Solar Power Kit for CCTV Cameras & Street Lights
