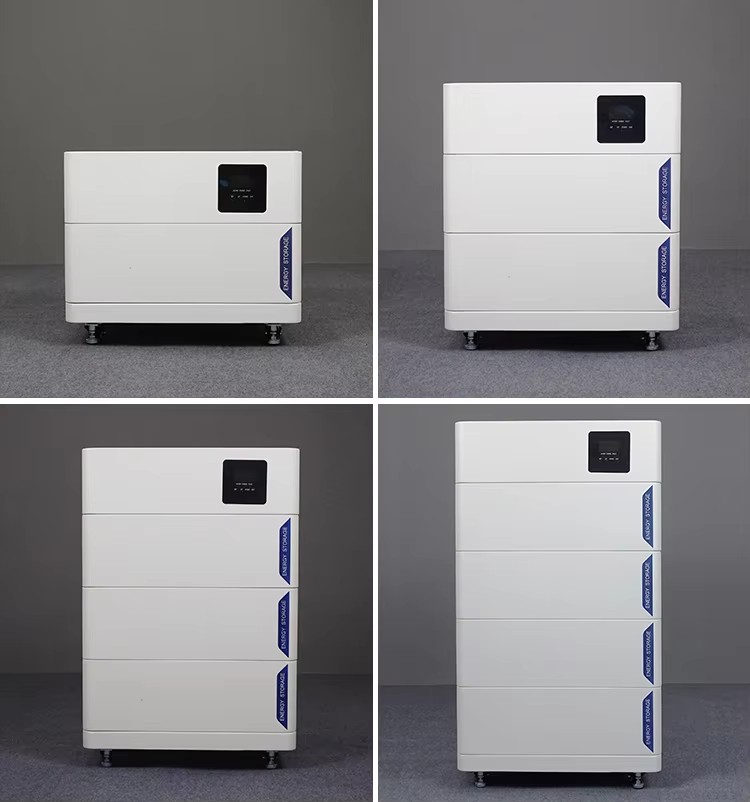

Stackable design 10kwh 15kwh 20kwh with storage hybrid inverter

Features of All in one removable lithium battery 1.High voltage 2.High energy 3.Long cycle life 4.Good safety performance 5.Easy to move; 6.Remote control; 7.Modular design, capacity/power can be freely selected;
  • item no.:

    5-20KW
products details


our feature
Safety: LiFePO4 batteries are known for their excellent thermal and chemical stability. They are less prone to overheating and thermal runaway, making them a safer choice compared to some other lithium-ion chemistries.

Long Cycle Life: LiFePO4 batteries have a long cycle life, which means they can be charged and discharged many times without significant degradation in performance. This makes them suitable for applications where longevity is important.

Fast Charging: High-voltage LiFePO4 batteries can support relatively fast charging, which can be useful in applications where rapid replenishment of energy is required.

Wide Temperature Range: They can operate effectively over a wide temperature range, making them suitable for both high and low-temperature environments.
Product Paramenters
Single Module Capacity
5.12kwh
Module Number
1
2
3
4
Rated Capacity
5.12kwh
10.24kwh
15.36kwh
20.48kwh
Nominal Voltage
51.2V
Working Voltage
44V-58.4V
Nominal Discharging Current
100A
200A
300A
400A
Nominal Charging Current
50A
100A
150A
200A
Recommended Discharge Level
80%
Humidity
20%-60%
Installation Method
Stacked mode
Protection Level
IP20
Communication Protocol
CAN/RS485/RS232(WIFI Optional)
Dimension/module
600*440*200mm
Net Weight/module
40kg
Battery Pack Parameters
Cell Type
LFP
Battery Rated Input Voltage
51.2VDC
Hybrid Charging Maximum Charging Current
80A
Battery Pack Voltage Range
40VDC-60VDC
Photovoltaic Input Parameters
Maximum PV Open Circuit Voltage
500VDC
PV Working Voltage Range
120V-500VDC
MPPT Voltage Range
120V-450VDC
Maximum PV Input Current
16A
Maximum PV Input Power
5500W
Maximum PV Charging Current
100A
AC parameters(Grid-connected side)
Maximum Charging Current
60A
Rated Input Voltage
220V/230VAC
Input Voltage Range
170VAC-280VAC
Frequency
50Hz/60Hz
Charging Efficiency
>95%
Switching Time
10ms
Maximum Bypass Overload Current
40A
AC output parameters(Grid-connected side)
Output Voltage Waveform
Pure sine wave
Rated Output Voltage
230VAC±5%
Rated Output Power
5000W
Peak Power
10000VA
