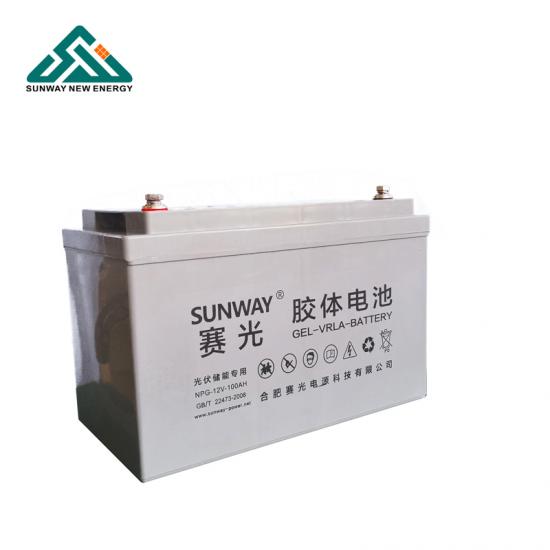

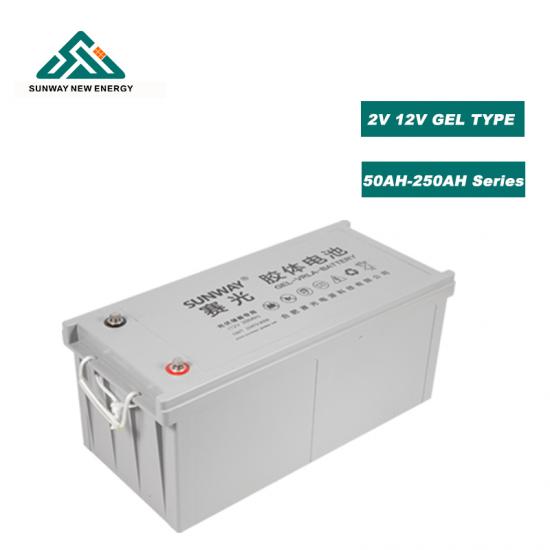

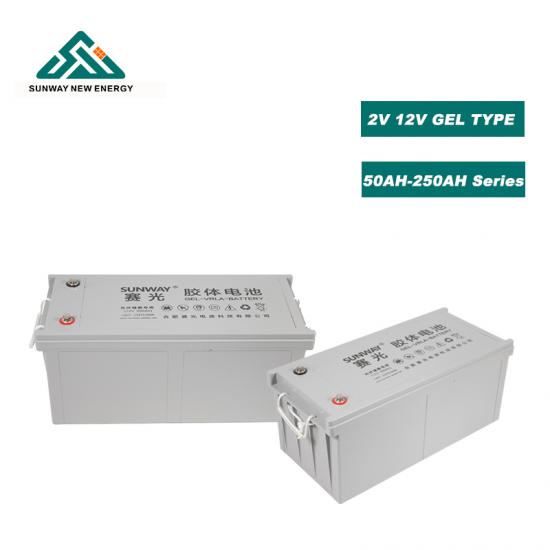

12V 100AH lead acid gel battery
Description of 12V 100AH lead acid gel battery
Feature of 12V 100AH lead acid gel battery
1). AGM (Absorbing Glass Mat) technology of which
the electrolyte is absorbed.
2). Maintenance-free operation - no addition of
water to the electrolyte is required.
3). Sealed Battery with Valve Regulated
Construction .Can be mounted in any orientation.
4). Wide range of operating temperatures with
temperature compensated charging.
5). Computer designed lead, calcium tin alloy
grid for high power density.
6). Extended service life due to low
self-discharge levels.
7). Available in flame retardant ABS
material for the battery case
Technical Data of 12V 100AH lead acid gel battery
Rated
Voltage
12V
Rated
capacity (10 hour rate)
100Ah
Dimension
Length
329mm
(12.96inches)
Width
172mm
(6.78inches)
Height
214mm
(8.43inches)
Total
Height (with terminal)
236mm
(9.30inches)
Weight
Approx
28.3Kgs
(62.26Ibs)
Terminal
M8-20
Copper Terminal
Copper
Wire
Characteristic of 12V 100AH lead acid gel battery
Capacity
at 25'C (77'C)
10
hour rate / 1.8V/Cell
100Ah
Charge
Limit
initial current to 25A.
Cycle
Applications
14.5V-14.8V
"Float"
or "Stand-By" Service
13.5V-13.8V
Note:
Due to the self-discharge characteristics of this type of battery,
it is
imperative that they be charged within 6 months of storage, otherwise permanent
loss of capacity might occur as a result of sulfation.
Operating
Temperature Range
-25'C~50'C
Shelf
Life
(%
of nominal capacity at 77°F(25°C))
1
Month
97%
3
Months
93%
6
Months
87%
The
shelf life shall be a minimum of 6 months at 25°C. The available capacity at
the end of this time period shall not be less than 80% of the rated capacity.
The cell shall recharge to at least 80% of the rated capacity within 8 hours.
Terminal type of 12V 100AH lead acid gel battery
Package information
In
carton
Packing
in wooden Box
Pcs/Ctn
Ctn
Ctns/Box
Box
Size
1
342*185*273mm
45
1075*995*990mm
