1KW off grid solar inverter
1kW off grid solar inverter features
This low frequency inverter used for large power home load or machines. It has huge transformers inside can suffer large current and votlage. All inverter is true power rate will not use fake components to reduce any cost.To get the most out of the power inverter, it must be installed and used properly.
l Using the
fifth efficient IPM power module from Mitsubishi
l High conversion
efficiency, Max. Efficiency≥88%
l Perfect
protection and warning functions
l Low
Frequency Transformer, which ensures that inverter has high efficiency and low
no-load loss
l Pure sine
wave output, has higher efficiency and higher capability of driving load
l LCD
display, high efficiency, easy installation
Certificates
> Compliant with European Standards (CE)
> RoHS compliant
> SGS
> ISO 9001
> Made in China
Spcifications of 1KW off grid solar inverter
1kW off grid solar inverter features
This low frequency inverter used for large power home load or machines. It has huge transformers inside can suffer large current and votlage. All inverter is true power rate will not use fake components to reduce any cost.To get the most out of the power inverter, it must be installed and used properly.
l Using the
fifth efficient IPM power module from Mitsubishi
l High conversion
efficiency, Max. Efficiency≥88%
l Perfect
protection and warning functions
l Low
Frequency Transformer, which ensures that inverter has high efficiency and low
no-load loss
l Pure sine
wave output, has higher efficiency and higher capability of driving load
l LCD
display, high efficiency, easy installation
Certificates
> Compliant with European Standards (CE)
> RoHS compliant
> SGS
> ISO 9001
> Made in China
|
Mode |
SPI-10/15 |
|||
|
Rated Power (W) |
1000W/1500W |
|||
|
Rated Voltage(V) |
12/24VDC |
48VDC |
||
|
Output |
AC Output（VAC） |
110VAC /120VAC /220VAC/230VAC （Optional） |
||
|
AC output waveform |
Pure Sine Wave |
|||
|
Power Factor(PF) |
0.8 |
|||
|
Output Frequency |
50Hz/60Hz±0.05Hz |
|||
|
Efficiency |
95% |
|||
|
Environment |
Ambient temperature |
-15~+55℃ |
||
|
Using environment humidity |
0~90%，No condensation |
|||
|
Using altitude [m] |
≤2000 |
|||
|
Display |
LCD |
|||
|
D&W |
Dimension (L*D*H) [mm] |
312 * 262 * 118 |
||
|
Net Weight [Kg] |
11.7 |
|||

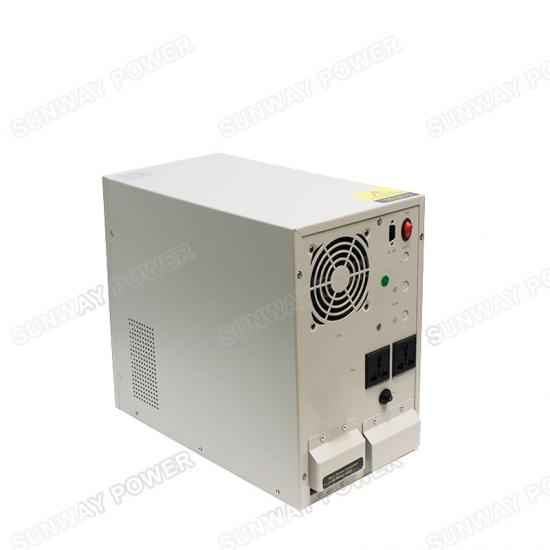

Produce of 1KW off grid solar inverter
1KW off grid solar inverter
