Functions introduction:
SUNWAY AC/DC portable power station is one type of novel design,multiple function product, it made by safe lithium ion battery high efficiency inverter conversion technology, and smart body, light weight, high capacity, large power, portable handy, combines many functions in one, can be a very good for family and outdoor emergency using.
Main functions:
•220V50HZ/110V60HZ Pure Sinusoidal Wave AC Output
• Cigarette lighter: 12V10A*1 stable DC output (strong output, being able to meet the demand of car tire pump)
• 12V5A*2 stable DC output (10A Max for single use)
• USB 2.0 5v3.5A *1 Output
• USB QC3.0 *1 output (maximum 18W power)
• 45W C *1 Output (Max 65W)
• LED emergency lighting (lighting, SOS, flash)
• Display the status of remaining battery power, input/output working power, remaining time(clear, accurate and intuitive display)
• Vehicle-mounted charging (DC12-30V wide input, 97% efficiency)
• Support Solar panel charge (100W and above Solar Panel can be directly plugged in to charge, No need external converter)
• Car jump starter: Car jump starter is powerfuland can start cars hundreds of times.just partial model productwith this function)
Special Features:
• The charging ways adopts the leading chip and leading design technology, input anti-backconnection function, 12-30V range, efficiency up to 97%;
• Excellent intelligent single chip microcomputer and advanced software algorithm control, as well as the unique AC circuit soft start Function design, so as to better cope with various load characteristics of electrical appliances, fully meet the resistance, tolerance and perceptual load electrical appliances use, and Protection Function complete, higher safety reliability, efficiency up to 91%.
• AC/DC output has excellent overcurrent, overload, overheat, short circuit Protection Function, more safe and reliable;· Excellent 3C discharge ratio power lithium ion battery (strong and durable capacity, long discharge time)
• Ultra-low power consumption, automatically turn off the power when the load current < 20mA.
• BYD's excellent BMS Protection board management chip has Protection functions such as overheat, overcurrent, short circuit and dropped line.
Application Scope:
• Suitable for a variety of smart digital products, such as mobile phones, satellite phones, digital cameras, mobile hard drives, tablets, LED lights, laptops,
• Suitable for all kinds of electrical products, such as power supply, lighting, water pump, post and telecommunication, medical equipment, etc. (pay attention to power matching).
Parameter
600W standard type
|
No.
|
Product Name
|
AS1000
|
|||
|
1
|
AC Continuous Output Power
|
1000W
|
|||
|
2
|
AC peak power
|
2000W
|
|||
|
3
|
AC output voltage
|
AC pure sine wave 220V/50HZ or AC110V60HZ
|
|||
|
4
|
Output waveform
|
Pure sine wave
|
|||
|
5
|
Battery model
|
3.6V2600mAh (7S16P)
|
|||
|
6
|
Battery capacity
|
|
|||
|
7
|
Battery type
|
Lithium-ion battery cell (supports instant 3 seconds discharge at 20C)
|
|||
|
|
|||||
|
9
|
DC Output
|
The 12V constant pressure of cigarette lighter and 12V constant pressure
of DC head are 10A
|
|||
|
10
|
DC Output
|
USB2.0 5V2A / USB QC3.0 / Type-C
|
|||
|
11
|
Charging time
|
6-8H
|
|||
|
12
|
Charging Voltage and Current
|
DC 18~30V 3.5A(MAX) Solar energy 18V
|
|||
|
13
|
Protection function
|
Overvoltage, Low Voltage, Overtemperature, Overload, Output Short Circuit
Protection
|
|||
|
14
|
LED lighting
|
2W*1 (Short Range Astigmatic Illumination)
|
|||
|
15
|
Working environment temperature
|
-20ºC ~ 60ºC
|
|||
|
16
|
Product size
|
|
|||
|
17
|
Net/Gross weight:
|
10.5
|
The power can be customized, for example, 300W, 1000W, 1500W, 2000W.
Battery capacity also enlarged. More details, please call us or send message directly

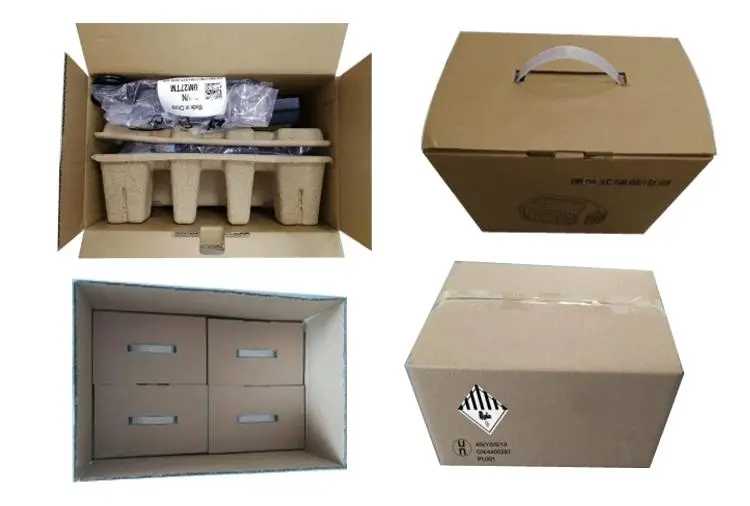

The Box size: L285*W178*H263( mm )
The CTN size: L580*W380*H280( mm )
The package: 1 piece/Box, 4 box/CTN
