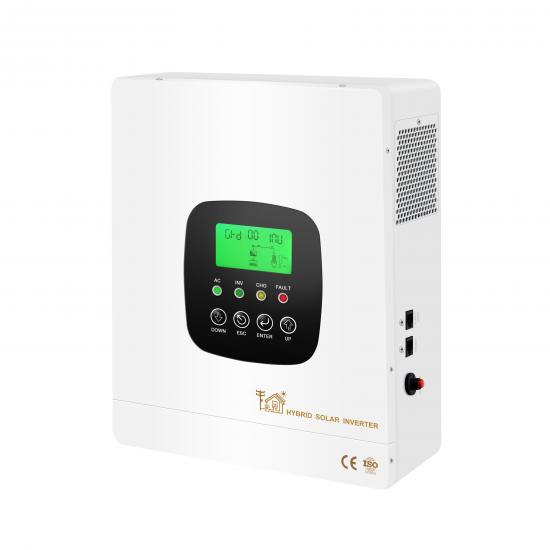

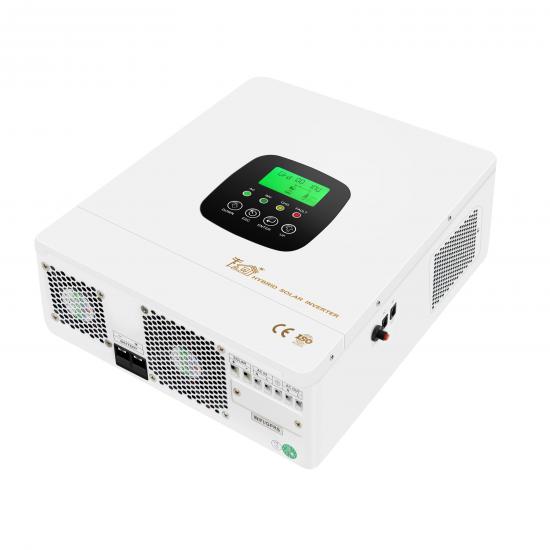

10KW On/Off grid hybrid solar inverter with built in MPPT charge controller
ALL IN ONE HYBRID MPPT SOLAR INVERTER
KEY FEATURES
1.Touch screen display.
2.PV and utility power take the load at same time
3.Output power factor=1.0
4.On & Off grid with energy storage
5.Energy generated record, load record, history information and fault record
6.Parallel opration upto 12 units
7. With wide PV input range:120VDC-500VDC
8. Max PV array power:5000W
9. Zero output optional. CT sensor will monitor the power consumption of the system and will make sure no excess PV power feed to grid
2.We have stock and delivery time is fast
3.Pure sine wave inverter
5.Configurable battery charging current based on applications via LCD setting
WHY CHOOSE US
1.QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2.Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SUNWAY is becoming the most growthful China UPS supplier all over the world.
FAQ
1.How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.
Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.
.......................................................................................................................................................................................................................................
2.How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Notice:
Resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
........................................................................................................................................................................................................................................
3.How connection between batteries and an power inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.
.....................................................................................................................................................................................................................................
4.How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
