310W Poly solar panels for solar power system
Specifications of Poly solar panel from 310W-335W
| Electrical Characteristics of Poly panels | |||||||||
| Module No. | UOM | SWP72-310 | SWP72-320 | SWP72-325 | SWP72-330 | SWP72-335 | |||
| Rated Maxmum Power-Pmax | WP | 310 | 320 | 325 | 330 | 335 | |||
| Maxmum Power Voltage-Vmp | V | 36.82 | 37.3 | 37.55 | 37.85 | 38.05 | |||
| Maxmum Power Current -Imp | A | 8.42 | 8.58 | 8.66 | 8.72 | 8.8 | |||
| Open Circuit Voltage-Voc | V | 45.05 | 45.43 | 45.55 | 45.85 | 46.03 | |||
| Short Circuit Current-lsc | A | 9.1 | 9.12 | 9.39 | 9.47 | 9.58 | |||
| Power Tolerance | % | +/-3 | |||||||
| Module Efficiency | % | 16.16 | 16.68 | 17.06 | 17.3 | 17.53 | |||
| Current Temperature coefficient | %/k | 0.06±0.01 | |||||||
| Voltage Temperature Coefficient | mv/k | -(155±10) | |||||||
| Power Temperature Coefficient | %/k | -(0.5±0.05) | |||||||
| Nominal Operating Cell Temperature(NOCT) | ℃ | 45±2℃ | |||||||
| Standard Test Conditions STC:1000W/Wm2, spectrum AM1.5 and cell temperature 25ºC. | |||||||||
| Mechanical & Packaging Characteristics | |||||||||
| Type of Solar Cell | Poly Crystalline 156*156mm | ||||||||
| Solar cell and Configuration | 72（8X9） | ||||||||
| Dimension of Module | mm | 1950X984X40 | |||||||
| Weight | kg | 22.5 | |||||||
| Junction Box | IP67 Rated | ||||||||
| Type of Glass and Thickness | Low-ron Tempered Glass | ||||||||
| Frame | Clear anodized aluminium alloy, color: silver | ||||||||
| packing Configuration and Quantity per Pallet | 30 pcs per carton and one carton per pallet | ||||||||
| Container Loading Capacity for 20GP | 288 | ||||||||
| Container Loading Capacity for 40GP | 576 | ||||||||
| Container Loading Capacity for 40HQ | 648 | ||||||||
| Warranty: 5 years product warranty and 25 years performance warranty ensure reliability of modules. | |||||||||
| Note: All specifications & characteristics we can provide depend the customer's requirement. | |||||||||
Dimensions of 72Cells Poly solar panels
Curve of 72Cells solar panels

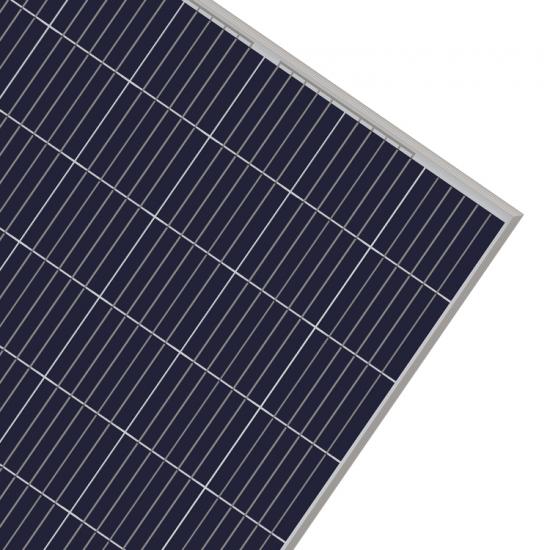

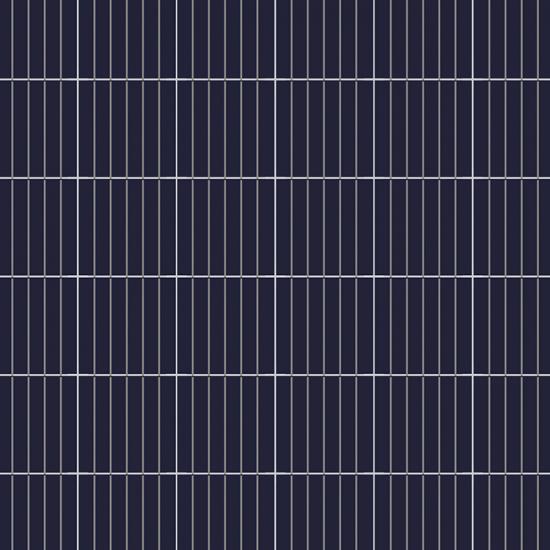

Details of Poly solar panels
Assemly of 72Cells Poly solar panels
Package of Poly solar panels
Payment of Poly solar panels
